Lab Assignment #1
Binairo puzzle
SAT vs ASP
Introduction
This assignment consists in solving the
Binairo puzzle (see here an online game),
also called Takuzu, and described as follows. We
have a grid of n
x
n
cells that may contain a white circle or a black circle.
The initial configuration provides some cell values and
the rest must be filled with circles according to the
following rules:
- Each row and each column must contain the same
number of circles of each color, that is, n/2
instances of each case.
- There cannot be more than 2 consecutive circles of
the same color in any direction (vertical or
horizontal).
- There cannot be two rows or two columns with the
same configuration.
An example of initial configuration and the corresponding
solution can be seen below.
|
|

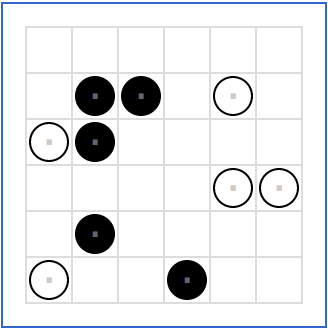

Initial
configuration
|

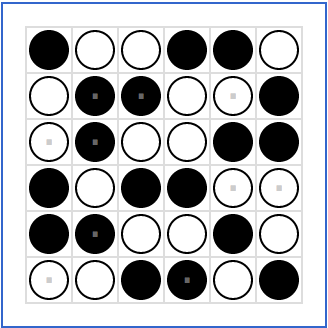

Solved puzzle
|
What to do
We will encode the scenario both as a
SAT problem and as an ASP program.
- SAT: write a program called binairo in any
programming language of your choice (C, java, python,
caml, prolog, etc) and used as:
binairo <inputfile>
This takes an ASCII file <inputfile>
with the initial grid where each cell
contains a character: '0'
(a white circle), '1' (a black
circle) or '.' (an
empty cell to be filled). The first line contains an
even number n>=2
specifying the number of rows and columns (we have a
square grid). For instance, the example in the picture
above would be represented as:
6
......
.11.0.
01....
....00
.1....
0..1..
|
Your program will generate a DIMACS file (as explained
in class) and make an external call to clasp to get a
solution. It will also decode back the clasp output and
print the complete solution as follows:
100110
011001
010011
101100
110010
001101
|
- ASP: write an ASP encoding of the
same problem and use clingo
to solve the puzzle. In this case, the pretty printing
is not needed (assuming that the predicate
representation you choose is meaningful and readable)
but you will need an extra program to transform the
input files into ASP facts for the representation you
choose.
File examples.zip contains
a set of benchmarks of different sizes (n=6,8,10,14,20), where
domX.txt is the
input file and solX.txt
its corresponding solution.
Assessment & delivery
The maximum grade for this exercise is 0,7
points = 7% of the course. The deadline for delivery
is Wednesday, March
22nd March 27th, 2019
using the MOODLE assignment. Exercises can be made by
groups of 2 students at most. If so, only one student is
required to deliver the files in moodle, but all source
files must contain the names of the two group members.
Delivery: upload all files in a .zip including a
README.txt describing how to compile the code for the SAT
interface programs. Regardless of the programming language
you choose, avoid using non-standard libraries.
|
|
|
