Lab Assignment #1
Light-Up puzzle
Introduction
This assignment consists in solving the
Light-Up
puzzle (try here an online game), also called Akari,
and described as follows. We have a grid of n
x
n
black or white cells. Black cells may additionally contain
a number from 0 to 4. The player can place any number of light
bulbs in white cells, as needed. A bulb sends
horizontal and vertical rays of light: the ray lights up
all adjacent white cells in the same direction until it
reaches a black cell or the grid border. The rules for
placing the bulbs are the following:
- All white cells must be lighted up by some bulb
- A light bulb cannot send a light ray on another bulb
- If a black cell contains a number N, then the number
of bulb cells that share an edge with the black cell
must be exactly N.
An example of initial configuration and the corresponding
solution can be seen below.
 |
 |

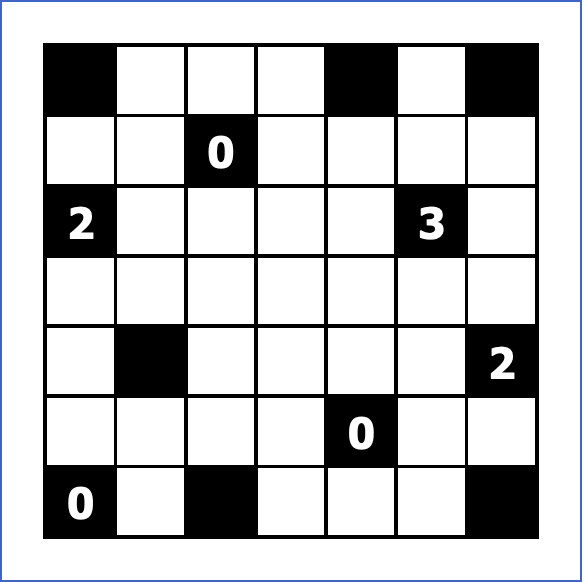

Initial
configuration
|

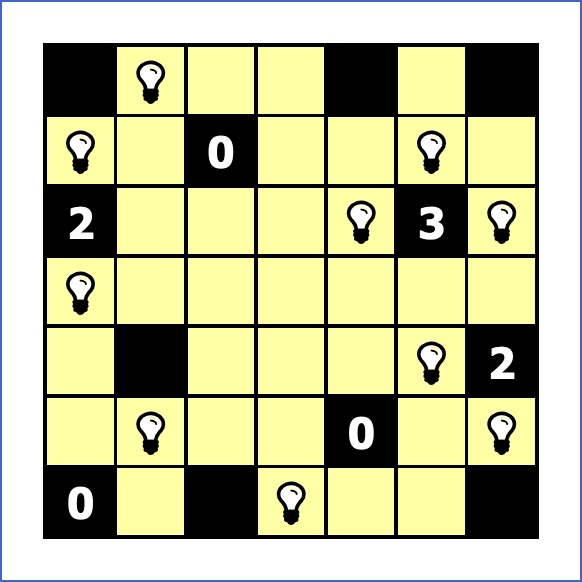

Solved puzzle
|
What to do
Step 1. Each input instance is
an ASCII file containing a squared grid (n x n) with the
following format. The file contains n lines (the rows) and
each line contains n characters (the columns) ended by a
newline. Each cell contains a character that can be:
- 'x' = a
black cell
- a digit from '0' to
'4' = a black
cell with the corresponding number inside
- '.' = an
empty white cell that can be filled with a bulb, if
needed
The following shows the input format for the initial
configuration above:
x...x.x
..0....
2....3.
.......
.x....2
....0..
0.x...x
|
The file examples.zip
contains several input files and their solutions.
You can also visualize the solution graphically using
clingraph: you will need the files viz-lightup.lp,
bulb.png and
the script command show.
For its use, just type, for instance:
show dom01.txt
Step 2. Write a python program he program encode.py to
transform each input ASCII file into a logic program
containing facts. For instance:
python3 encode.py <
dom01.txt > domain.lp
|
will transform the example above into the set of facts:
cell(0,0,x).
cell(0,4,x).
cell(0,6,x).
cell(1,2,0).
cell(2,0,2).
cell(2,5,3).
cell(4,1,x).
cell(4,6,2).
cell(5,4,0).
cell(6,0,0).
cell(6,2,x).
cell(6,6,x).
dim(7).
#const n=7.
|
where "cell(X,Y,V)" means that cell in row X and column Y
contains value V (number 0..4 or an 'x' letter).
Step 3. Encode the light-up problem in clingo in a file called
lightup.lp. You can use
clingo 0 lightup.lp domain.lp
|
to obtain all the answer sets. You should check that each
puzzle should have a unique solution. To display
the puzzle solution as an ASCII file (as those included in
the examples) you can use instead the program decode.py as
follows:
python3 decode.py lightup.lp
domain.lp
|
To use this program, you need facts like cell(0,1,b) to
represent, for instance, that a light bulb is placed at
row 0 and column 1.
Assessment & delivery
The maximum grade for this exercise is 25
points = 25% of the course. The deadline for
delivery is November 24th, Wednesday, November 29th, 2023 using
the MOODLE assignment. Exercises can be made by groups of
2 students at most. If so, only one student is required to
deliver the files in moodle, but all source files must
contain the names of the two group members.
Delivery: upload all files in a .zip including a
README.txt with the student names and any additional
comment you consider relevant.
|
|
|
