VVS: model checking

Petri Nets


In this exercise we will use SPIN to verify properties about Petri Nets, a kind of transition graph commonly used for representing concurrent protocols involving shared resources in many areas in Computer Science such as Concurrent Programming, Software Engineering, Workflow modeling, Simulation, Diagnosis or Business Process Modeling. They can be used, for instance, as an alternative to Activity Diagrams in UML.

Definitions: a Petri Net is a graph formed by two disjoint sets of nodes, T and P, respectively called transitions (represented as thick bars) and places (depicted as circles), and a set of arcs A (T x P) (P x T). This means that arcs can go from a place to a transition or vice versa, but will never connect two places or two transitions directly. Given a transition t, we define its incoming places as In(t) := {p | (p,t) ∈ A} and its outgoing places as Out(t) := {p | (t,p) ∈ A}. A marking M of the net is a function M: P -> Nat assigining a natural number to each place in the net. Graphically, if M(p)>0 this is represented by including a number M(p) of black dots (tokens) inside the circle for place p. If M(p)=0 the circle is left empty. A marking is said to be 0-1 if all the places have one or zero tokens. We say that a transition tT is enabled in a marking M, when M(p)>0 for all input places p In(t).

Execution: The Petri Net is executed by defining the valid steps from one marking M to another M'. A valid step, represented as MM', is such that there exists some enabled transition tT in M that has been fired in M', that is, we have consumed one token from all input places and produced one token for all output places. Formally, for any place p, the value of M'(p) is defined as:

  • M(p)-1 if  p In(t) \ Out(t)
  • M(p)+1 if p Out(t) \ In(t)
  • M(p) otherwise, that is,  p Out(t) ∩ In(t)

The execution starts from an initial marking denoted as M0 and proceeds in consecutive steps M0M1 M2 → ...  As we can see, executions can run forever: they only stop when there are no enabled transitions. In a given step, we may have several enabled transitions so that one is chosen non-deterministically. For some execution examples, see this interactive tutorial from TU Eindhoven.

For an easy-to-use tool, including edition and simulation, try PIPE2.


The goal of this exercise is playing with a pair of Petri net examples in SPIN and verifying some conditions:
  1. absence of deadlock: we cannot reach a state in which all processes get blocked waiting for something to happen.
  2. safety: check that a given (wrong) configuration is not reachable.
  3. absence of starvation (fairness): check whether some transition is fired infinitely often.
  4. boundedness: check that the number of tokens in a given place is bounded.
Example 1: An elevator (Elevator 2 from TU Eindhoven tutorial)

An elevator is working in a 4 floors building, represented by places P1, P2, P3, P4. The following Petri net represents the possible transitions and the initial situation (the elevator is at the ground floor).

elevator petri net

A simple formalization of this problem in Promela can be:
#define Place byte            // assume at most 255 tokens per place
Place p1=1, p2=0, p3=0, p4=0  // place p1 has an initial token

#define enabled(x)    x>0 -> x--
#define fire(x)       x++

  :: enabled(p1) -> fire(p2); A1: printf("A1\n")
  :: enabled(p2) -> fire(p3); A2: printf("A2\n")
  :: enabled(p3) -> fire(p4); A3: printf("A3\n")
  :: enabled(p4) -> fire(p3); A4: printf("A4\n")
  :: enabled(p3) -> fire(p2); A5: printf("A5\n")
  :: enabled(p2) -> fire(p1); A6: printf("A6\n")

Given the initial marking in the picture above, check the following conditions:
  • Safety: check whether we could have tokens at two different floors. Explain the obtained result.
  • Fairness: check that each floor is visited infinitely often. Explain the obtained result.
  • Boundedness: check that each place in the net is always marked with 0 or 1 tokens, but not more.
Example 2: Two traffic lights (from TU Eindhoven tutorial)

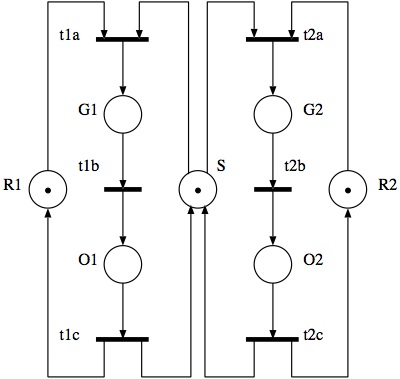

traffic lights petri net

This Petri net represents two traffic lights 1 and 2 that can alternate the sequence Green - Orange - Red but should not be Green simultaneously. The Petri net uses one place per each color and traffic light: G1, O1, R1, G2, O2, R2. It contains an additional place S to guarantee that only one green light is turned on. Using the initial marking depicted above:
  • Formalize the problem in Promela
  • Safety: check that a situation in which both traffic lights are green is not reachable. Explain the obtained result.
  • Fairness: check whether both traffic lights can reach each color infinitely often. Explain the obtained result.
  • Boundedness: check that each place in the net is always marked with 0 or 1 tokens, but not more.
  • Use SPIN to check if there exists an initial 0-1 marking that violates the boundedness condition above.

Example 3: Sender and Receiver

In this third example you will have to model the corresponding Petri net. We have two processes (sender and receiver) that operate in the following way:

  1. When the sender is free, it prepares a new message. Once the message is ready, it sends it to the communication line (a buffer) and keeps waiting for an acknowledgement (ack) from the receiver. When the ack is received, the sender is free to prepare a new message again.
  2. When the receiver is ready to receive, it waits for some message in the buffer. Once the message is received, it sends an ack signal to the sender and begins processing the received message. When the message has been processed, the receiver becomes ready to receive again.

The buffer has room for a single message, the sender is initially free and the receiver is initially ready to receive.

  • Design the corresponding Petri Net
  • Formalize the problem in Promela
  • Check absence of deadlocks
  • Liveness: check that any sent message is eventually processed by the receiver (before we send anything else)
  • Fairness: check that both sender and receiver may process infinitely often

Assessment & delivery

The maximum grade for this exercise is 1,3 points. To submit your work: send all individual files attached by e-mail (don't use compressed formats .zip, .tar, etc).

The deadline for delivery is Tuesday,  May 2nd,  2017 (23:59).

Maintained by Pedro Cabalar. Last update November 23rd, 2016
